產品：KT54
產品特性:
■特點：
☆符合日本標準。
☆短圓柱連接形式。
☆適用于盤類零件的精加工，還可夾持較小棒料。
☆配帶軟卡爪。
■Specificity:
☆Conform to Japanese standard.
☆Short cylindrical center connection.
☆The chucks are suitable for precision machining of plate shaped workpieces, also can clamp smaller rod materials.
☆Mached with the soft jaws.
產品詳情

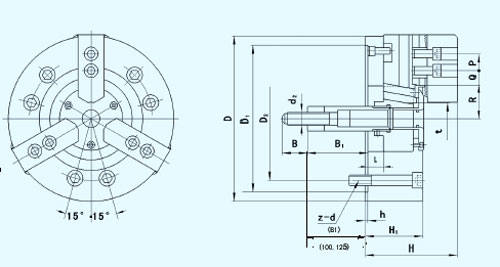

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D3
|
H1
|
H
|
h
|
B
|
p
|
Q
|
R
|
B1
|
d2
|
z-d
|
|
max
|
min
|
max
|
min
|
max
|
min
|
|
100
|
110
|
60
|
80
|
52
|
79
|
6
|
25
|
14
|
11.25
|
8.25
|
23.3
|
20.1
|
18
|
3
|
M10×1.5
|
3-M8
|
|
125
|
135
|
80
|
100
|
55
|
84
|
7
|
35
|
19
|
11.25
|
6.75
|
30.4
|
27.2
|
9
|
-6
|
M12×1.75
|
3-M8
|
|
160
|
169
|
140
|
104.8
|
74
|
109
|
5
|
36
|
20
|
13.75
|
7.75
|
37.8
|
33.55
|
101.5
|
81.5
|
M16×2.0
|
6-M10
|
|
200
|
210
|
170
|
133.4
|
85
|
127
|
5
|
36
|
25
|
22.25
|
11.75
|
46.3
|
41.9
|
127
|
106
|
M20×2.5
|
6-M12
|
|
250
|
254
|
220
|
171.4
|
89
|
134
|
5
|
36
|
30
|
30.75
|
11.25
|
51.1
|
46.7
|
158
|
133
|
M20×2.5
|
6-M16
|
|
315
|
304
|
220
|
171.4
|
106
|
160
|
6
|
36
|
30
|
48.75
|
12.75
|
61
|
55.75
|
163
|
133
|
M20×2.5
|
6-M16
|
■性能參數 Characteristic Parameters
|
規格
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦油缸
Rec.
cylinder
|
凈重Kg
Net WT
|
|
100
|
15
|
6.4
|
8.2
|
22.8
|
6000
|
8-110
|
25-110
|
P24 P22 80
|
4.1
|
|
125
|
15
|
6.4
|
8.2
|
25.8
|
5500
|
16-135
|
25-135
|
P24 P22 80
|
6.2
|
|
160
|
20
|
8.5
|
18
|
52.5
|
5270
|
19-165
|
30-165
|
P24 105
P22 100
|
13
|
|
200
|
21
|
8.8
|
25
|
75
|
4760
|
23-210
|
36-210
|
P24 P22 125
|
25
|
|
250
|
25
|
8.8
|
29
|
108
|
4010
|
24-254
|
45-254
|
P24 P22 125
|
37
|
|
315
|
30
|
10.5
|
41
|
156
|
3380
|
26-304
|
60-304
|
P24 P22 160
|
59
|
|
