產品：KFM
產品特性:
■特點：
☆短圓柱連接形式。
☆一次裝夾能加工多個工位，定位精度和重復定位精度高。
☆主軸在回轉中也能自動分度，可加工90°、45°、60°、120°的零件。
☆夾緊和分度由2個功能不同的卡爪完成。
■Specificity:
☆Short cylindrical center mounting.
☆Mount several chucks so as to fulfill multi-step process with high centering and high repeating centering accuracy.
☆The spindle can index in rotaing ,machining components 90°、45°、60°、120°.
☆Clamping and indexing by the two different function jaws.
產品詳情

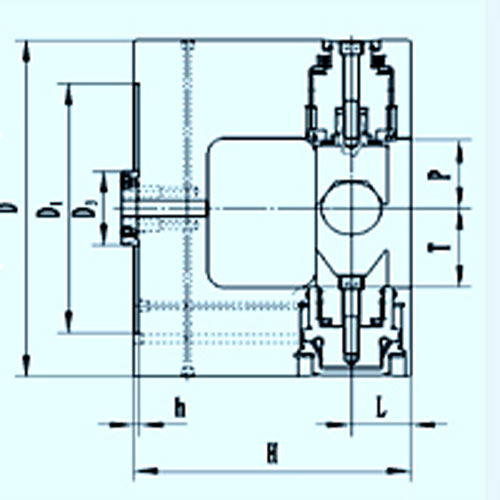

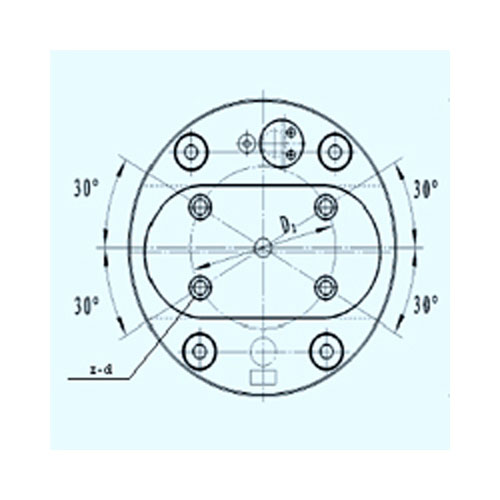

■尺寸、性能參數(shù) Dimension Parameters
|
規(guī)格
Size
|
D
|
D1
|
D2
|
D3
|
H
|
h
|
L
|
T
|
P
|
z-d
|
最大夾緊力KN
Max.gripping force
|
極限轉速
r/min
Max. Speed
|
卡爪夾持行程mm
Clamping stroke
|
|
KFM
|
315
|
220
|
171.4
|
80
|
227
|
6
|
50
|
75
|
65
|
4-M16
|
17KN
|
2600
|
22
|
|
